Legacy Product:
Topaz i.MX25 CPU Module

This product is no longer available. The information below is provided as reference for existing customers.

Low-Power Industrial Apps

Topaz i.MX25 CPU Module

  • NXP i.MX25 System-on-Chip
  • 64MBytes Low-Power DDR RAM
  • 128MBytes NAND Flash
  • 10/100 Ethernet PHY

Gallery

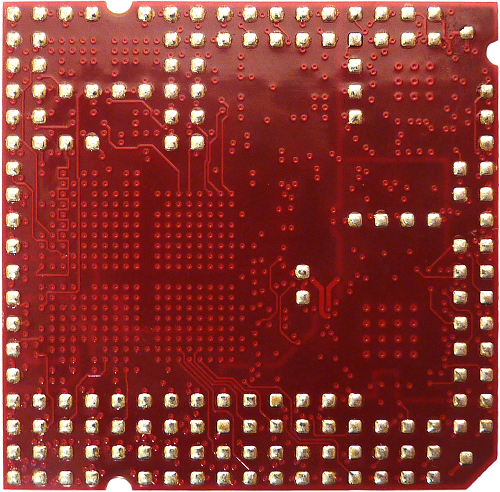

Topaz LGA SoM – Bottom

Topaz LGA SoM – Top

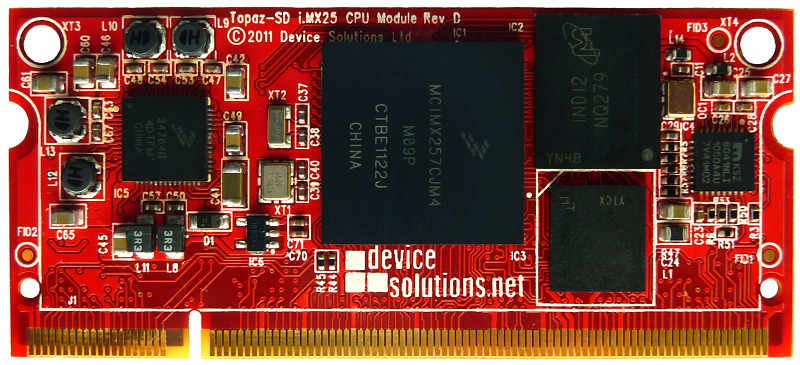

Topaz SO-SIMM

Specifications

Core

  • Freescale i.MX25 System-on-Chip
  • ARM 926 core @ 400MHz
  • 64MB LPDDR
  • 128MB NAND Flash

Connectivity

  • 10/100 Ethernet with on board PHY
  • High-Speed (480Mbps) USB OTG
  • Full-Speed (12Mbps) USB Host
  • 5 x Serial UART
  • 3 x I2C
  • 2 x SPI
  • 2 x FlexCAN3
  • 2 x Secure Digital Card
  • 3.3V & 1.8V General Purpose I/O
  • 3 x 12-bit ADC

Graphics and User Interface

  • TFT LCD controller up to 800×600
  • I2C/AC97 Audio interface
  • Digital camera input
  • Keypad controller
  • Resistive touch-screen controller

Security

  • Secure boot option
  • Anti-tamper signals
  • Crypto acceleration

Package

Surface-mount LGA

  • 38mm x 38mm footprint
  • < 2mm height
  • Zero connector cost for lower system cost

Standard SO-DIMM footprint

  • Best for prototyping
  • < 3mm height

Development Kit

Prototype new devices and develop software FAST on the Topaz Development Kit

  • 10/100 Ethernet
  • USB Host
  • SD Card
  • TFT Interface with 4.3″ and 7″ options
  • Other signals on 0.1″ Headers
  • Stereo audio out

Software

Topaz runs Linux and Microsoft’s Windows Embedded Compact Operating Systems. Software documentation, including a list of supported featured for each OS is on-line here.

Windows Embedded CE 6.0 R3

GuruCE supported Windows CE on Topaz.
